Garvee Espresso Machine with Built-In Grinder and Milk Frother

Perkenalan

Thank you for choosing the Garvee Espresso Machine. This semi-automatic espresso machine features a built-in grinder, a high-power milk frother, and a digital LCD for precise control. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new appliance. Please read all instructions carefully before first use and retain this manual for future reference.

Informasi Keselamatan

Untuk memastikan pengoperasian yang aman dan mencegah kerusakan, harap perhatikan tindakan pencegahan keselamatan berikut:

• Selalu hubungkan mesin ke stopkontak yang diarde.
• Jangan merendam mesin, kabel daya, atau steker dalam air atau cairan lainnya.
• Jauhkan tangan dan peralatan dari bagian yang bergerak selama pengoperasian, terutama penggiling.
• Exercise extreme caution when using the steam wand, as hot steam can cause burns.
• Cabut mesin dari stopkontak sebelum membersihkan atau saat tidak digunakan.
• Do not operate the machine with a damaged cord or plug, or if the machine malfunctions or has been damaged in any manner.
• Peralatan ini hanya untuk penggunaan rumah tangga.

Isi Paket

Verifikasi bahwa semua item ada dalam paket:

• Garvee Espresso Machine with Built-In Grinder
• 58mm Sieve Handle (Portafilter)
• 1-Cup Coffee Filter Basket
• 2-Cup Coffee Filter Basket
• Teko Susu
• Sikat Pembersih
• Tamper
• Membersihkan Jarum

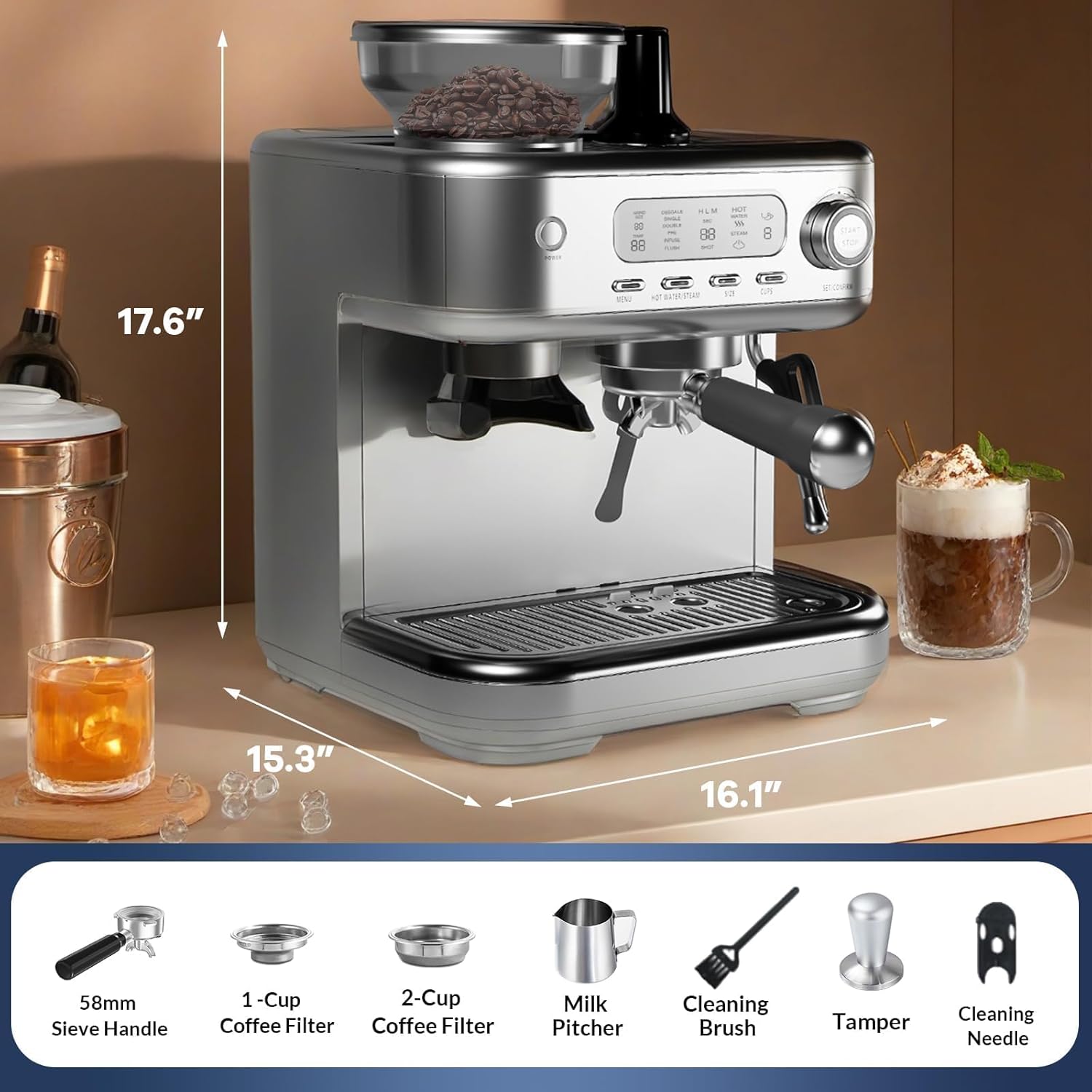

Image: Garvee Espresso Machine and its included accessories.

Produk Selesaiview

The Garvee Espresso Machine is designed for home use, offering professional-grade features for brewing espresso and frothing milk. It incorporates a 20-bar pressure system and PID temperature control for consistent extraction and rich flavor. The integrated conical burr grinder provides 15 precise settings for fresh coffee grounds. The digital LCD screen displays real-time brewing information, making operation intuitive.

Gambar: Depan view of the Garvee Espresso Machine.

Fitur Utama:

• Penggiling Burr Kerucut Terintegrasi: 15 adjustable settings for fresh coffee grounds.
• 20-Bar High-Pressure Extraction: Ensures optimal flavor and crema.
• Kontrol Suhu PID: Mempertahankan suhu air yang tepat untuk penyeduhan yang konsisten.
• Layar LCD Digital: Displays grind size, temperature, shot time, and steam function.
• High-Power Milk Frother: For creating velvety lattes and cappuccinos.
• Portafilter Profesional 58mm: For single or double shots.
• Tangki Air yang Dapat Dilepas: 2.3L capacity for convenience.
• Fungsi Pembersihan Kerak: Untuk memudahkan perawatan.

Image: Detail of the integrated stainless steel conical burr grinder with 20 adjustable grinding levels.

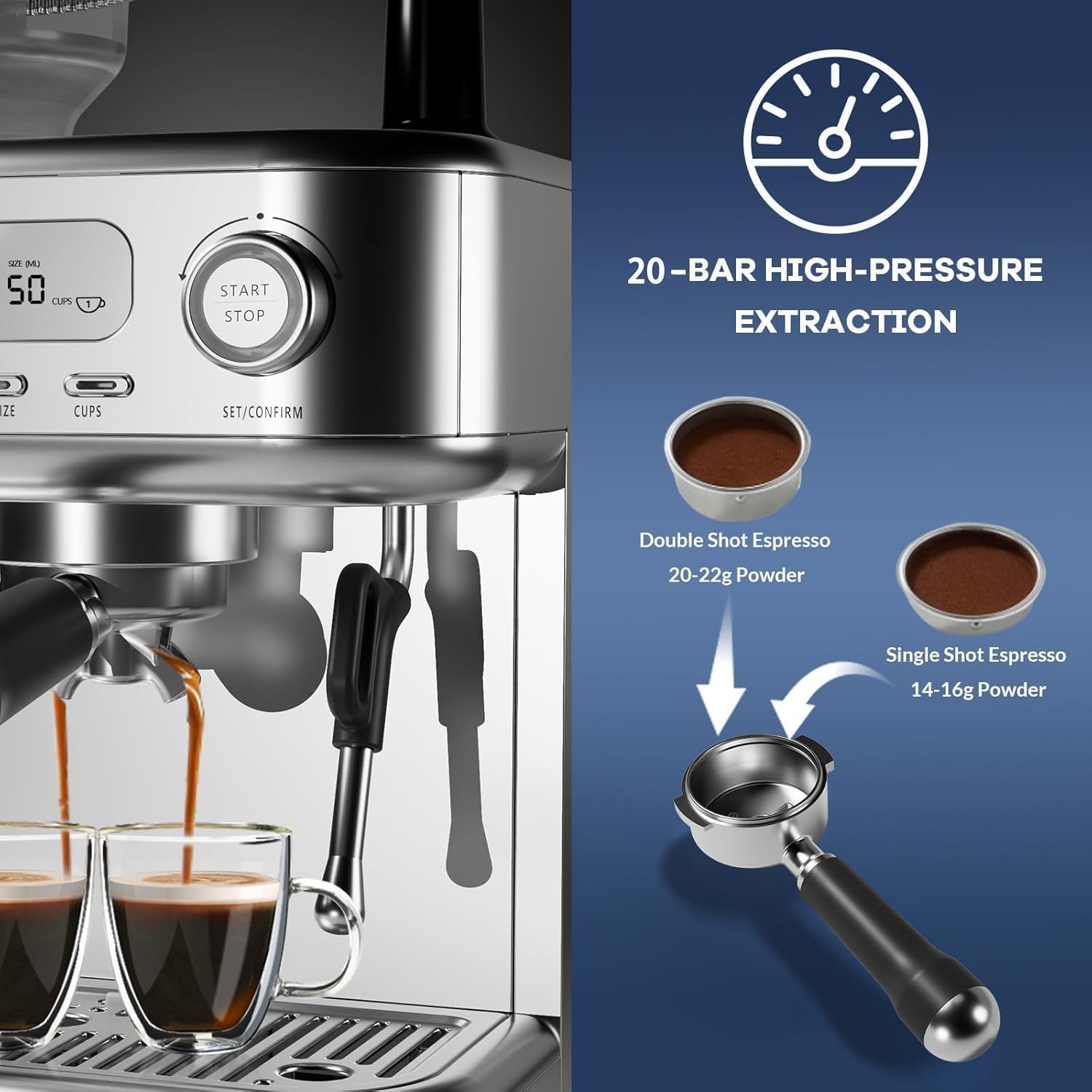

Image: Illustration of 20-bar high-pressure extraction for espresso.

Gambar: Internal view showing the PID Temperature Control System.

Image: Smart Control Panel with Digital LCD Screen.

Image: Powerful Steam Wand for milk frothing.

Pengaturan

Before first use, ensure the machine is placed on a stable, level surface and is connected to a suitable power supply. The following steps detail the initial setup process.

Panduan Video Pengaturan

1. Grinder Installation

1. Align the two rings of the grinder hopper with the corresponding markings on the machine.
2. Ensure the GRIND SIZE marking is aligned within the 1-15 number range.
3. Add fresh coffee beans to the grinder hopper.
4. Place the lid on the grinder hopper.

Refer to the video guide from 0:17 to 0:23 for visual instructions.

2. Pemasangan Tangki Air

1. Fill the water tank with fresh, cold water up to the indicated maximum level (2300ml).
2. Align the grooves in the water tank with the raised grooves on the back of the machine.
3. Slide the water tank into place until it is securely seated.

Refer to the video guide from 0:24 to 0:30 for visual instructions.

Operasi

This section details the steps for brewing espresso and frothing milk.

1. Portafilter and Tamp

1. Turn the knob on the control panel to adjust the desired coffee powder weight.
2. Insert either the single or double filter basket into the portafilter and press it firmly into place.
3. Align the notch on the portafilter handle with the insertion point on the bottom of the grounds dispenser.
4. Press down to activate the grinder and dispense coffee grounds into the portafilter.
5. Gunakan tamper to evenly press the coffee grounds into the portafilter, ensuring a level and compact puck.

Refer to the video guide from 0:31 to 0:44 for visual instructions.

2. Menyeduh Kopi

1. Align the portafilter notch with the insertion point on the underside of the brew group.
2. Carefully twist the portafilter counter-clockwise until the handle aligns with the LOCK TIGHT marking on the brew head.
3. Letakkan cangkir espresso Anda di bawah corong portafilter.
4. Use the "Cup" button to select the desired cup size (1 cup dispenses 35ml, 2 cups dispenses 80ml).
5. Press the Start/Stop button to begin the coffee brewing process.

Refer to the video guide from 0:45 to 0:58 for visual instructions.

3. Susu Berbusa

1. Move the steam wand to a suitable position over the drip tray or a cup to purge any residual water.
2. Press the Menu button to select the STEAM function on the LCD screen.
3. When the machine is ready, press the Start/Stop button to begin steaming. A countdown will appear on the LCD screen.
4. Submerge the steam wand into a milk pitcher filled with cold milk. Hold the frothing jug at an angle so the top of the steam wand is just below the surface of the milk.
5. Once the milk reaches the desired temperature and texture, press the Start/Stop button to stop steaming.
6. Segera bersihkan tongkat uap dengan cairan pembersih.amp kain untuk mencegah sisa susu mengering.

Refer to the video guide from 0:59 to 1:16 for visual instructions.

Pemeliharaan

Regular cleaning and maintenance are crucial for extending the life of your Garvee Espresso Machine and ensuring optimal performance.

1. Quick Cleaning (Descaling)

1. Place two empty cups or bowls under the portafilter and milk frother.
2. Press the Clean button (often labeled 'DESCALE'), then press the Start/Stop button.
3. The machine will dispense water in 3 cleaning cycles for approximately 4 minutes.

Refer to the video guide from 1:30 to 1:43 for visual instructions.

2. Grinder and Powder Collector Cleaning

• Use the included small brush to clean any residual coffee grounds from the grinder burrs and the powder collector.

Refer to the video guide from 1:44 to 1:57 for visual instructions.

3. Steam Wand Cleaning

• After each use, wipe the steam wand with a clean, damp kain.
• If necessary, use the cleaning needle to unclog the steam wand tip to prevent blockages and scaling.

Refer to the video guide from 1:58 to 2:03 for visual instructions.

4. Drip Tray Cleaning

• The drip tray is detachable for easy cleaning. Regularly empty and clean the drip tray to prevent overflow and maintain hygiene.

Refer to the video guide from 2:04 to 2:08 for visual instructions.

Penyelesaian Masalah

If you encounter issues with your Garvee Espresso Machine, refer to the common problems and solutions below:

Spesifikasi

Garansi dan Dukungan

Your Garvee Espresso Machine is covered by a manufacturer's warranty. For specific warranty details, please refer to the warranty card included in your product packaging or contact Garvee customer support.

For technical assistance, troubleshooting, or to inquire about replacement parts, please contact Garvee customer support through the retailer where the product was purchased or visit the official Garvee weblokasi.
