BILT HARD 22" Portable Sawmill TRS-1008 User Manual

1. Produk Lebihview

The BILT HARD 22" Portable Sawmill is designed for efficient milling of logs up to 22 inches in diameter and 129 inches (10.7 feet) in length. It is powered by a reliable 270cc Ducar 4-stroke gas engine, providing robust performance for various woodworking projects. This sawmill is suitable for homeowners, DIY enthusiasts, and small woodworking shops looking to process timber directly from their property or local sources.

Fitur Utama:

• Reliable 9HP Gas Engine: Powered by a 270cc Ducar 4-stroke engine with a straightforward recoil start.
• Substantial Cutting Capacity: Handles logs up to 22 inches in diameter and 129 inches (10.7 feet) in length, producing boards up to 20 inches wide and 6.3 inches thick.

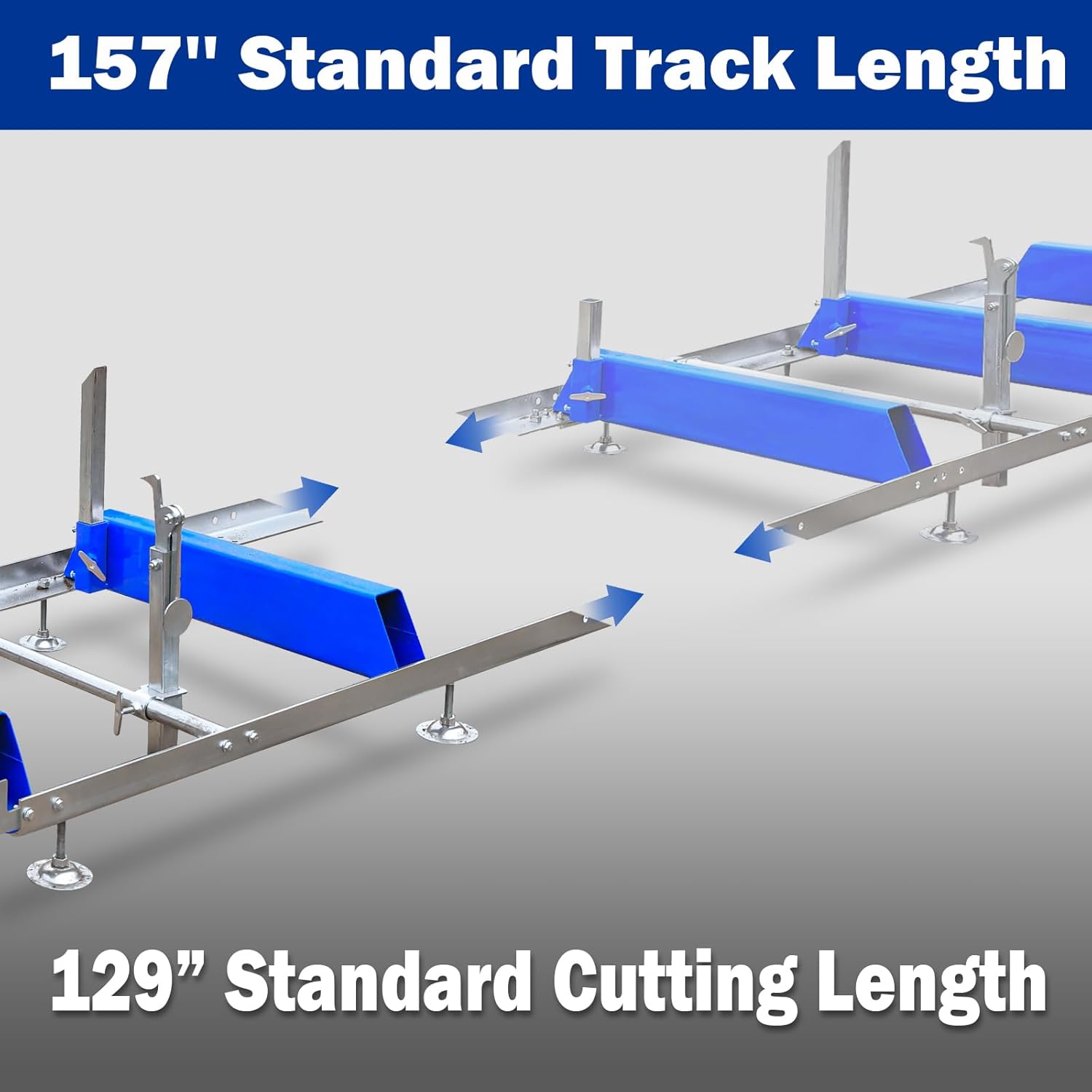

• Sturdy & Compact Track Frame: Features a 26-inch track width and a 157-inch total track length for stability, while remaining compact for transport and storage.
• Precision Control & Safety: Includes a precision thickness ruler and a conveniently located Emergency Stop Button for operator safety.

2. Pengaturan dan Perakitan

This section provides step-by-step instructions for assembling your BILT HARD 22" Portable Sawmill. Refer to the accompanying video for visual guidance during the installation process.

2.1 Pembongkaran dan Identifikasi Komponen

1. Open the Wooden Box: Carefully open the wooden shipping crate.
2. Lepaskan Semua Bagian: Take out all components from the box. Ensure all parts listed in the packing list are present.
3. Lift Main Unit: Use a lifting hook (as shown in the video) to safely lift the main sawmill unit from the crate.
4. Retrieve Manual: Locate and remove the instruction manual from the manual tube attached to the main unit.
5. Tata Letak Komponen: Lay out all track rails and other components in an organized manner for easier assembly.

Gambar 2.1: All components of the BILT HARD 22 inch portable sawmill laid out on the floor, including the engine, track sections, and various hardware.

2.2 Perakitan Rel

6. Install Track Feet: Attach the adjustable feet to the bottom of each track section. There are 3 feet per track, totaling 12 feet.
7. Attach Crossbeams (Front/Rear): Install the two crossbeams at the front and rear ends of the track. These crossbeams should be installed on the second row of screw holes on the track using Hexagon flange bolts (M10x30) and Nuts (M10).
8. Install Anti-Drop Hooks: Secure L-shaped anti-drop hooks at the four corners of the track using Hexagon flange bolts (M10x30) and Nuts (M10).
9. Install Remaining Crossbeams: Evenly install the remaining two crossbeams on the track. Ensure the vertical bars and square openings are consistent.
10. Install Sliding Tube: Attach the sliding tube to the track using Hexagon flange bolts (M10x30) and Nuts (M10).
11. Level the Bunk Assembly: Use a level to ensure the bunk assembly is perfectly level. Adjust the feet as necessary.
12. Secure Crossbeams: Pull a rope across the crossbeams to ensure they are all at the same height, then tighten all bolts.
13. Insert Log Supports: Insert the log supports into the vertical slots. Tighten the T-shaped screws and hexagonal flange bolts (M8x30) to secure them.
14. Install Log Clamps: Attach the log clamps to the track.

2.3 Instalasi Unit Utama

15. Prepare for Main Unit: Lift the handle to loosen the internal lock on the main unit.
16. Masukkan Tabung: Insert the square tube on the left side and the round tube on the right side into their respective slots on the main unit.
17. Position Pulley Bracket: Place the left pulley bracket under the square tube and release the handle to lower it down.
18. Connect Tube to Pulley Bracket: Use the connecting plate to connect the tube to the pulley bracket using Hexagon head bolt (M12x80), Flat washer, and Hexagon self-locking nut (M12).
19. Lock Handles and Remove Lifting Equipment: Lock the handles on both sides of the main unit and remove any lifting equipment.
20. Remove Top Crossbeam Screws: Remove the screws on the top crossbeam and the side screws.
21. Install Top Crossbeam: Insert the right circular ring into the round tube and tighten the screws on the left connecting plate using Flat washer (M16) and Hexagon self-locking nut (M16).
22. Install Lifting Handle: Attach the lifting handle.
23. Install Water Bucket Frame: Install the water bucket frame.
24. Install Height Indicator: Install the height indicator on the irregular-shaped connecting piece on the right side. Remove the hex socket screws and install the ruler.
25. Install Throttle Handle and Emergency Switch: Install the throttle handle and emergency switch on the square rod as shown.
26. Connect Emergency Stop Switch Wire: Remove the emergency stop switch wire and connect it to the engine.
27. Hubungkan Kabel Ground: Connect the blue ground wire to the metal parts of the engine casing.
28. Hubungkan Baterai: Connect the black and red wires to the battery (black is negative, red is positive). Risiko sengatan listrik.
29. Install Water Bucket: Place the water bucket in its frame and connect it to the blade's water outlet.
30. Install Throttle Cable: Install the throttle cable.
31. Install Steel Wire: Install the steel wire, ensuring its direction is consistent with the video.
32. Penempatan Akhir: Lift the main unit onto the track and complete the installation.

3. Petunjuk Pengoperasian

Proper operation of your BILT HARD Portable Sawmill ensures safety and optimal cutting performance. Familiarize yourself with the controls and procedures before starting any milling operation.

3.1 Daftar Periksa Pra-Operasi

• Ensure the sawmill is assembled correctly and all fasteners are tightened.
• Verify the track is level and stable.
• Periksa oli mesin dan tingkat bahan bakar.
• Ensure the water tank is filled for blade lubrication.
• Inspect the saw blade for damage or dullness.
• Confirm log clamps berfungsi dengan baik.
• Kenakan alat pelindung diri (APD) yang sesuai, termasuk pelindung mata, pelindung pendengaran, sarung tangan, dan alas kaki yang kokoh.

3.2 Loading Logs

1. Position the log onto the track bunks.
2. Use the versatile log clamps to firmly secure the log in place. Adjust the clamps according to the log's size and shape to prevent movement during cutting.
3. Ensure the log is stable and cannot roll or shift.

Gambar 3.1: A log being secured on the sawmill track with log clamps, demonstrating how to firmly hold the log in place.

3.3 Menyesuaikan Ketebalan Pemotongan

1. Use the board thickness adjustment handle to set the desired cutting thickness.
2. Refer to the precision ruler for accurate measurements. The sawmill can produce boards up to 6.3 inches thick.

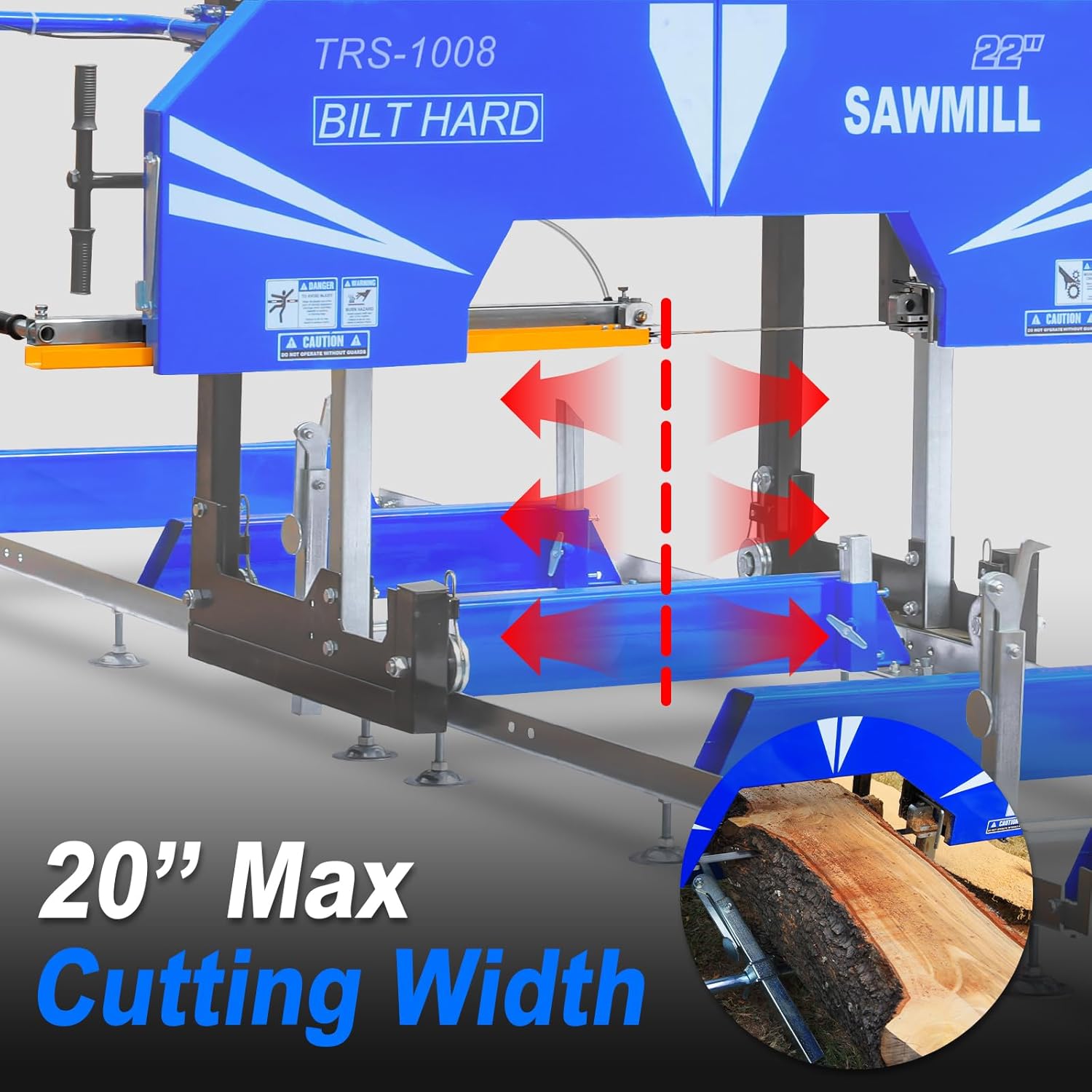

Gambar 3.2: Close-up of the sawmill's adjustable cutting width mechanism, showing the maximum 20-inch cutting width.

3.4 Starting and Cutting

1. Start the 270cc 9HP 4-stroke gas engine using the recoil start mechanism.
2. Engage the saw blade.
3. Use the throttle handle to control the cutting speed. A carbon steel blade spins at 65.7 feet per second (591 inches per second) for clean, accurate cuts.
4. Slowly guide the saw head through the log, maintaining a consistent speed.
5. In case of emergency, press the Emergency Stop Button located on the handle to instantly shut down the machine.

Gambar 3.3: A person operating the BILT HARD 22 inch portable sawmill, cutting a large log to produce lumber.

4. Pemeliharaan

Regular maintenance is crucial for the longevity and safe operation of your sawmill. Perform these checks and tasks periodically.

4.1 Pemeriksaan Harian

• Inspect the saw blade for sharpness and any signs of damage. Replace if necessary.
• Check all fasteners for tightness. Tighten any loose bolts or nuts.
• Ensure the water lubrication system is clean and functioning, providing adequate water to the blade.
• Clean sawdust and debris from the track, saw head, and engine area.

4.2 Pemeriksaan Mingguan/Bulanan

• Check engine oil level and change according to the engine manufacturer's recommendations.
• Inspect drive belts for wear and proper tension. Adjust or replace as needed.
• Lubricate all moving parts, including pulleys and bearings, as specified in the engine manual.
• Bersihkan atau ganti filter udara.

4.3 Penyimpanan

• Drain fuel if storing for an extended period.
• Clean the entire sawmill thoroughly before storage.
• Store the sawmill in a dry, protected area to prevent rust and damage.

5. Penyelesaian masalah

This section provides solutions to common issues you might encounter with your sawmill.

6. Spesifikasi

• Merek: BILT KERAS
• Nomor Model: TRS-1008
• Mesin: 270cc 9HP 4-Stroke Gas Engine (Ducar)
• Diameter Log Maksimum: 22 inci
• Panjang Log Maks: 129 inci (10.7 kaki)
• Max Board Width: 20 inci
• Max Board Thickness: 6.3 inci
• Lebar Lintasan: 26 inci
• Total Track Length: 157 inci
• Bahan Pisau: Baja Karbon Tinggi
• Kecepatan Pisau: 65.7 Kaki Per Detik
• Dimensi Produk: 173.23"P x 68.9"L x 63"T
• Berat Barang: 716.5 pon
• Sumber Daya: Gas
• Warna: Biru

7. Garansi dan Dukungan

BILT HARD is committed to providing high-quality products and exceptional customer service. For any questions or support needs regarding your sawmill, please contact us directly.

• Pelayanan pelanggan: For assistance, contact BILT HARD directly via Amazon email or through our official weblokasi.
• Pengembalian: Please note that Amazon does not handle returns of gasoline-related products. Contact BILT HARD customer service for return inquiries.
• Rencana Perlindungan: Optional protection plans may be available for purchase, such as a 4-Year Protection Plan or Asurion Complete Protect. Refer to your purchase details for more information.
