Bresser Junior Microscope 8851300E8G000 (40x-640x) User Manual

Perkenalan

This manual provides comprehensive instructions for the safe and effective use of your Bresser Junior Microscope 8851300E8G000. Designed for beginners, this transmitted light microscope offers magnification from 40x to 640x, featuring LED illumination and a wide range of accessories to facilitate initial explorations into the microscopic world.

Image: A collection of Bresser Junior Microscopes in various colors, showcasing desain produk.

Informasi Keselamatan

Please read and understand all safety instructions before using the microscope. Keep this manual for future reference.

• This device contains small parts that could be swallowed by children. Keep the microscope and accessories out of reach of small children.
• Batteries must be inserted with correct polarity. Do not mix old and new batteries or different types of batteries. Remove batteries if the device will not be used for an extended period.
• Do not look directly into the sun or other bright light sources through the microscope, as this can cause permanent eye damage.
• Avoid exposing the microscope to high temperatures or direct sunlight.
• Handle glass slides and cover slips with care to prevent cuts. Adult supervision is recommended for younger users.

Isi Paket

Verifikasi bahwa semua item yang tercantum di bawah ini disertakan dalam paket Anda:

• Mikroskop
• 3 Permanent Slides
• 8 Microscope Slides, Labels, and Cover Slips
• tahun 2ample Materials (Yeast, Shrimp Eggs)
• 1 Inkubator
• tahun 3ample botol
• 1 Microcut
• 1 Pinset
• 1 Pipet
• 1 Small Hand Magnifier
• 1 Gelas Ukur
• 1 Poster
• 3 Baterai AA
• Manual Instruksi

Image: All included accessories for the Bresser Junior Microscope.

Pengaturan

1. Pemasangan Baterai: Locate the battery compartment at the base of the microscope. Open it and insert the 3 AA batteries, ensuring correct polarity (+/-). Close the compartment securely.
2. Penempatan: Tempatkan mikroskop pada permukaan yang stabil dan rata.
3. Cara Memasang Lensa Okuler: Insert the eyepiece (WF10x-WF16x) into the top tube of the microscope.
4. Objective Lens Selection: Rotate the revolving nosepiece to select the lowest magnification objective lens (e.g., 4x).
5. Stage Klip: Angkat stage clips and place a prepared slide onto the stage, securing it with the clips.

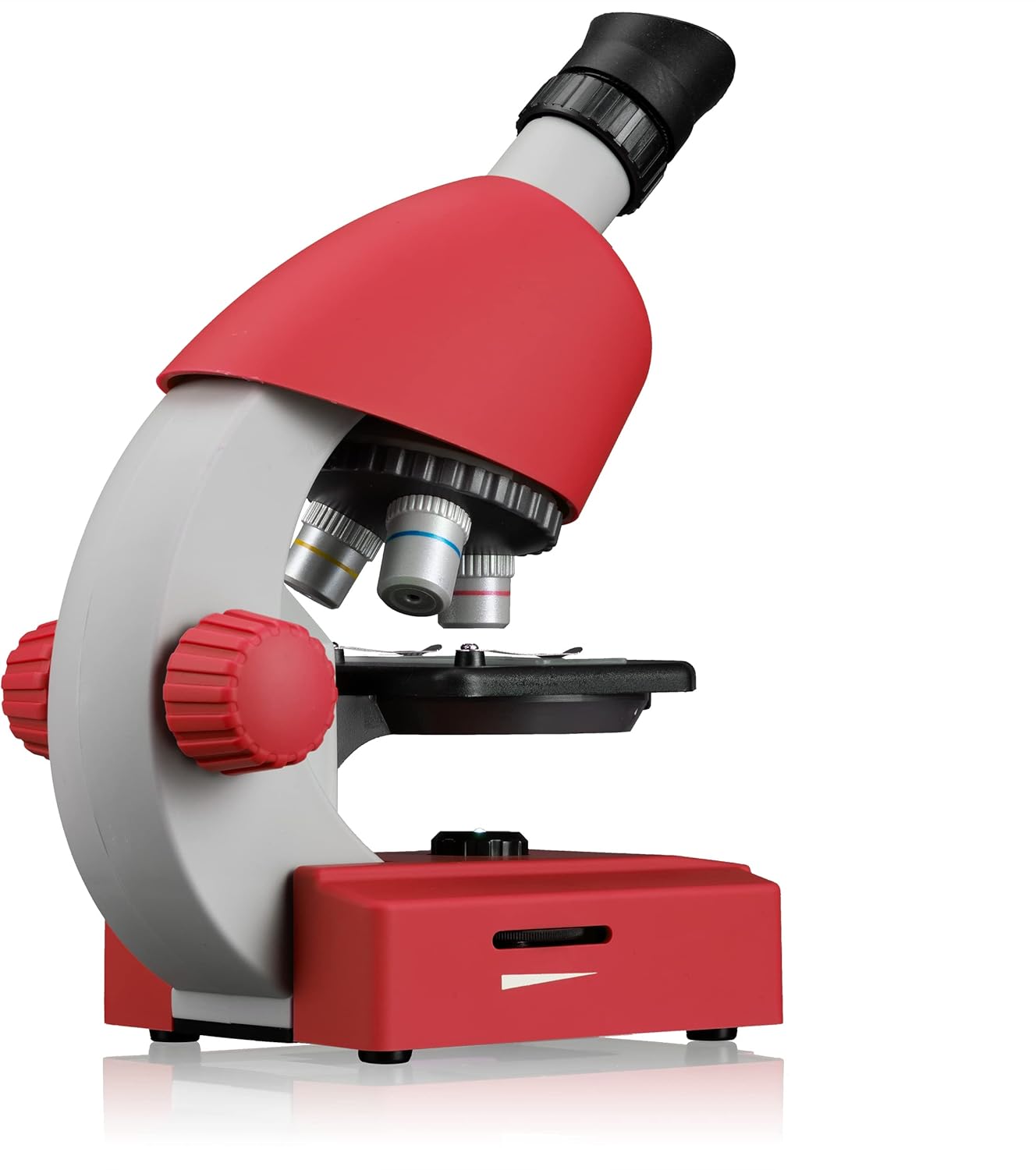

Gambar: Samping view of the microscope, illustrating the objective lenses and focusing mechanism.

Mengoperasikan Mikroskop

1. Turn On Illumination: Locate the LED illumination switch at the base of the microscope and turn it on. Adjust the brightness if a dimmer is present.
2. Fokus: While looking through the eyepiece, slowly turn the coarse focus knob (larger knob on the side) to bring the specimen into approximate focus. Then, use the fine focus knob (smaller knob, if present) for sharper detail.
3. Mengubah Pembesaran: To increase magnification, rotate the revolving nosepiece to a higher power objective lens (e.g., 10x, 40x). Re-adjust focus as needed. The eyepiece itself can also be adjusted for different magnifications (WF10x-WF16x).
4. Menggunakan Adaptor Ponsel Cerdas:
   • Attach the smartphone adapter to the eyepiece.
   • Secure your smartphone in the adapter, aligning the phone's camera with the eyepiece.
   • Open your phone's camera app to view and capture images or videos of your specimen.

Image: Microscope with smartphone adapter for digital viewing.

Image: A child using the Bresser Junior Microscope.

Pemeliharaan

• Membersihkan Lensa: Gunakan kain lembut dan bebas serat yang dirancang khusus untuk lensa optik untuk membersihkan lensa okuler dan lensa objektif. Jangan gunakan bahan abrasif atau bahan kimia keras.
• Pembersihan Tubuh: Usap badan mikroskop dengan kain lembut,amp kain. Hindari masuknya kelembapan ke dalam komponen elektronik.
• Penyimpanan: When not in use, store the microscope in a clean, dry, dust-free environment. Cover it with a dust cover if available. Remove batteries if storing for extended periods.
• Handling Slides: Always handle slides by their edges to avoid fingerprints on the viewdaerah ing.

Penyelesaian Masalah

Spesifikasi

Garansi dan Dukungan

For warranty information, technical support, or service inquiries, please refer to the official Bresser websitus web atau hubungi layanan pelanggan mereka. Simpan struk pembelian Anda sebagai bukti pembelian.
