Garvee Wireless Heated Floor Mat 8x10 Instruction Manual

1. Pendahuluan

This manual provides essential information for the safe and efficient use of your Garvee Wireless Heated Floor Mat. Please read it thoroughly before installation and operation, and retain it for future reference.

The Garvee Wireless Heated Floor Mat is designed to provide gentle, radiant heat from the floor up, enhancing comfort in various indoor spaces. Its plush surface offers a soft feel underfoot, making it suitable for living rooms, bedrooms, offices, and game rooms.

Woman and dog relaxing on a dark grey Garvee heated floor mat in a bedroom setting.

Image: A woman and a dog are comfortably seated on the dark grey Garvee heated floor mat, illustrating its use in a home environment.

2. Informasi Keselamatan Penting

Untuk mengurangi risiko kebakaran, sengatan listrik, atau cedera, selalu ikuti tindakan pencegahan dasar berikut:

Read all instructions before using this heated mat.
Jangan gunakan keset jika basah.
Pastikan matras diletakkan pada permukaan yang datar dan stabil.
This product is equipped with built-in overheat and leakage protection for safe daily use.
UL-certified components are used to ensure safety standards are met.
Kesesuaian Lantai: The reflective backing helps direct heat upwards, making it suitable for most hardwood and marble floors. Not recommended for vinyl, PVC, or other plastic flooring types.
For optimal performance and floor protection, use a 4 mm rug pad or felt underlay.
Keep children and pets away from the power cord and controller.
Do not fold or crease the mat excessively during operation.
Unplug the mat when not in use or before cleaning.

Diagram showing safety features of the Garvee heated mat including overheat protection, upward heat, floor safe icon, and auto shut-off.

Image: Visual representation of the mat's safety features, including overheat protection, upward heat distribution, floor safety, and auto shut-off functionality.

3. Isi Paket

Pastikan semua komponen ada dan dalam kondisi baik:

Garvee Wireless Heated Floor Mat (8' x 10', Dark Grey)
Pengendali Jarak Jauh Nirkabel
Adaptor Daya
2 x Baterai AAA (untuk remote kontrol)
Manual Instruksi

4. Petunjuk Penyiapan

Buka gulungan matras: Carefully unroll the heated floor mat in your desired location. Ensure it lies flat without any significant creases.
Perlindungan Lantai: If placing on hardwood or marble floors, consider using a 4 mm rug pad or felt underlay beneath the heated mat for added protection and efficiency. Avoid use on vinyl, PVC, or other plastic flooring.
Penempatan Furnitur: The 8' x 10' mat includes marked zones for heavy furniture, indicated by removable yellow ribbons. Place heavy furniture only within these non-heated zones. After positioning your furniture, gently remove the yellow ribbons.

Garvee heated mat with a yellow ribbon marking the safe zone for furniture placement, showing a sofa placed on the non-heated area.

Image: A yellow ribbon indicates the boundary between heated and non-heated zones on the mat, demonstrating where heavy furniture can be safely placed.

Hubungkan Daya: Connect the power adapter to the mat and then plug it into a standard electrical outlet.
Masukkan Baterai: Open the battery compartment on the wireless remote controller and insert the two AAA batteries provided, observing correct polarity.

5. Petunjuk Pengoperasian

The Garvee Wireless Heated Floor Mat features a user-friendly wireless remote for convenient control.

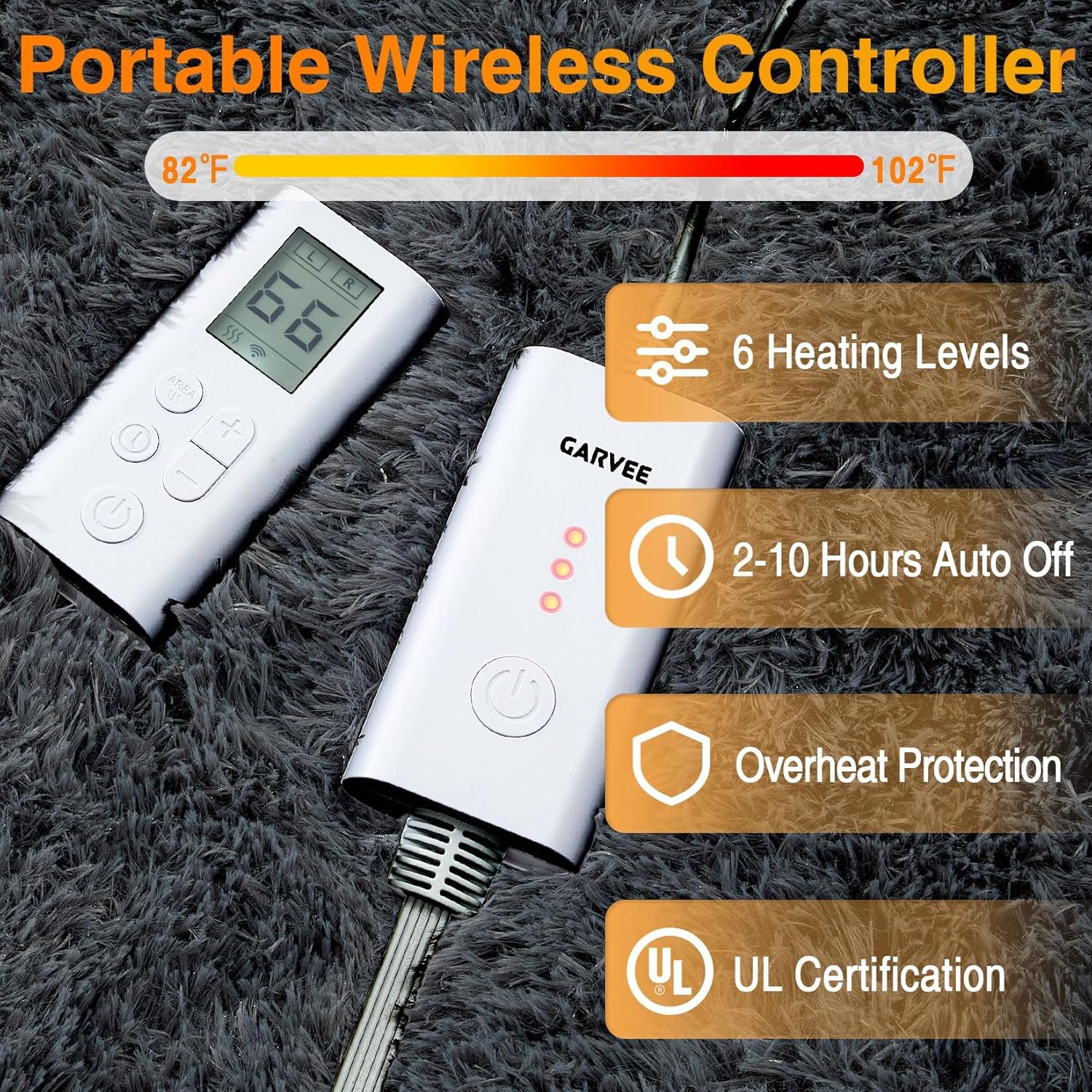

Close-up of the Garvee wireless controller and power unit, showing buttons for power, heat settings, and timer, along with UL certification and overheat protection icons.

Image: The portable wireless controller and main power unit, highlighting controls for 6 heating levels, 2-10 hour auto-off timer, overheat protection, and UL certification.

5.1 Daya Hidup/Mati

Tekan tombol Tombol daya on the wireless remote to turn the mat on or off.

5.2 Menyesuaikan Pengaturan Panas

The mat offers 6 adjustable temperature levels.
Gunakan "+" Dan "-" buttons on the remote to increase or decrease the heat intensity.
The current heat level will be displayed on the remote's screen.

5.3 Mengatur Timer

The mat features an auto-off timer that can be set from 2 to 10 hours.
Tekan tombol Tombol pengatur waktu on the remote to cycle through the available timer settings.
The mat will automatically shut off after the selected duration.

5.4 Dual-Zone Control

This heated mat features independent dual-zone control, allowing different temperature and timer settings for each side of the mat.

Refer to the remote control's display for indicators of the left (L) and right (R) zones.
Use the designated zone selection button (if available, or follow remote instructions) to switch between zones before adjusting heat or timer settings.
This allows for personalized comfort in shared spaces.

Image showing a heated mat with two children, one on each side, illustrating independent zone temperature control with different heat settings displayed for each side.

Image: Two individuals are shown on different sides of the mat, demonstrating the independent zone temperature control feature, allowing customized warmth for each user.

6. Pemeliharaan dan Perawatan

Proper care will extend the life of your heated floor mat.

Pembersihan: To clean the mat, simply vacuum the plush surface regularly.
Untuk tumpahan atau noda, bersihkan noda tersebut dengan deterjen ringan dan tambahkanamp cloth. Do not immerse the mat or its electrical components in water.
Ensure the mat is completely dry before reconnecting to power.
Penyimpanan: When not in use, unplug the mat and roll it loosely. Store in a dry place away from direct sunlight.
Do not place heavy objects on the mat during storage.

7. Penyelesaian masalah

Masalah	Kemungkinan Penyebab	Larutan
Mat does not heat up.	Kabel daya tidak terpasang dengan benar. Stopkontak listrik tidak berfungsi. Baterai remote control sudah habis atau terpasang dengan tidak benar. Mat is in auto-off mode.	Pastikan semua koneksi aman. Uji stopkontak dengan alat lain. Replace remote batteries or check polarity. Press the power button on the remote to reactivate.
Pemanasan tidak merata.	Mat is folded or creased. Heavy furniture placed on heated zone.	Ensure the mat lies completely flat. Relocate heavy furniture to the designated non-heated zones.
Kontrol jarak jauh tidak merespons.	Baterai hampir habis atau mati. Obstruction between remote and mat receiver.	Ganti baterai AAA. Ensure a clear line of sight between the remote and the mat's receiver.

8. Spesifikasi

Nama Model: YLYGArug-grey810_36JCY4MTber
Merek: Garvee
Ukuran: 8' x 10' (120"L x 96"W)
Warna: Abu-abu gelap
Bahan: Polyester (Plush Surface), TPR (Non-slip Backing)
Weave Type: Berumbai
Tinggi Tumpukan: Medium Pile
Berat Barang: 27.6 pon
Fitur Khusus: Overheat Protection, Dual-Zone Control, Wireless Remote
Pengaturan Panas: 6 levels (82°F - 102°F range, as per image)
Pengatur waktu: 2-10 hours auto-off
Sumber Daya: Listrik Kabel
Baterai Jarak Jauh: 2 baterai AAA (termasuk)
UPC-nya: 822200878391
ASIN: B0GJDM8DHB

Diagram illustrating the 8-layer structure of the Garvee heated mat, detailing ultra-soft plush surface, needle-punched cotton padding, heating wire, aluminum foil heat shield, and TPR non-slip backing.

Gambar: Potongan melintang view detailing the 8-layer structure of the mat, highlighting components like the ultra-soft plush surface, heating elements, and non-slip backing.

Close-up image showing the plush surface texture and the TPR non-slip backing of the Garvee heated mat.

Image: Detail showing the soft plush surface and the TPR non-slip backing, emphasizing comfort and stability.

9. Garansi dan Dukungan

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Garvee websitus. Simpan struk pembelian Anda sebagai bukti pembelian.
